Product Description
🔹

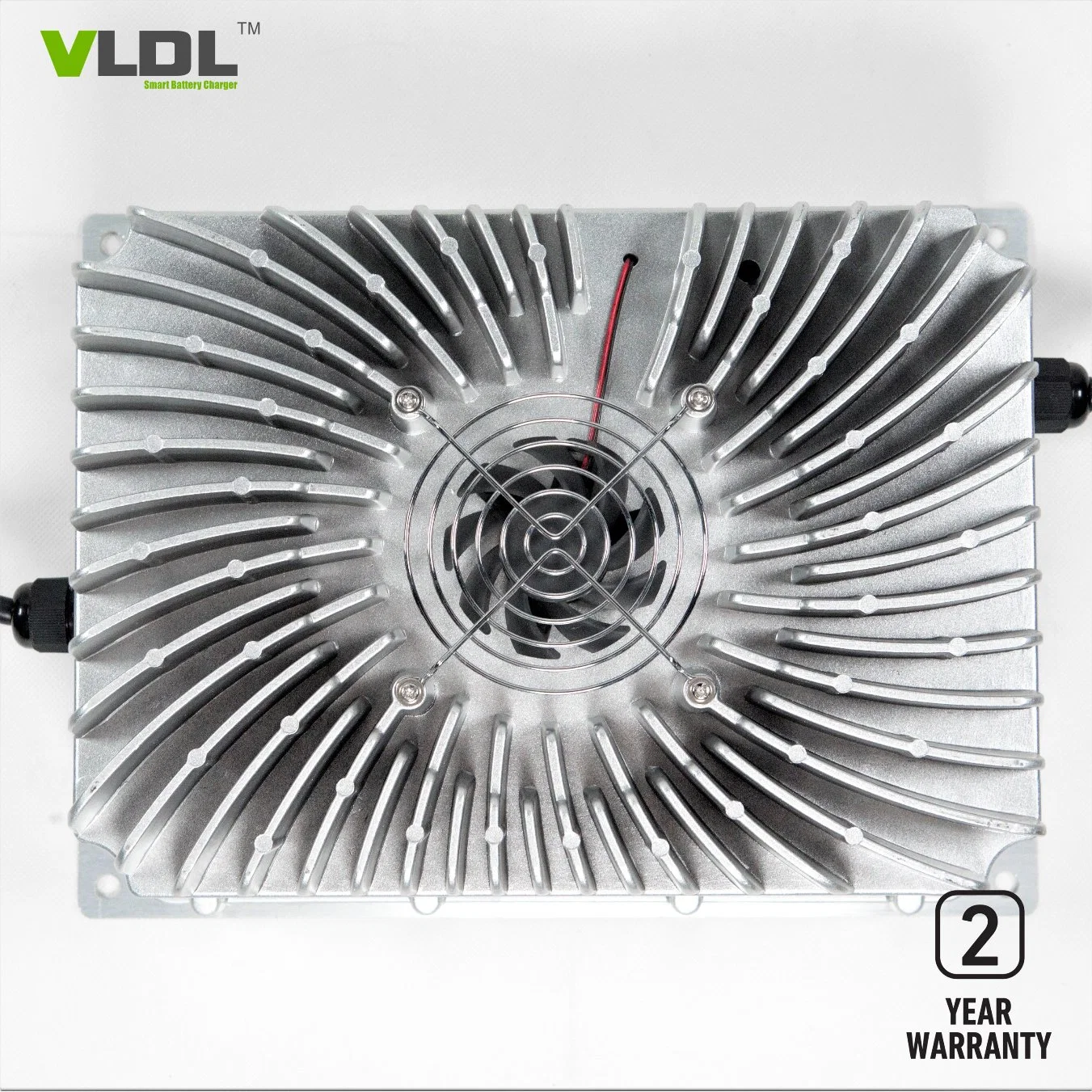

PFC 60V 15A IP65 Waterproof Battery Charger
High-performance solution for Lead-acid, Lithium-ion, or LiFePO4 batteries.
✔
Universal Input: 90~264Vac with PFC
✔
High Efficiency: 92% power conversion efficiency
✔
Intelligent Control: Micro-processor controlled 4-step charging
✔
Durability: IP65 / IP66 Waterproof Rating
Technical Specifications
Item No.: VL6015LWP
Dimension: 310*230*101 mm
Output Rated: 60Vdc 15Amps
Applied Battery: 60V Lithium-ion, LiFePO4, LiMnO2 battery
Smart Charging: Auto Pre-charge, CC, CV, Floating or Cut-off
Product Advantages
Smart and Advanced Charging Controls:
Fully customizable charging steps including pre-charging with small current, constant current, constant voltage, and automatic cut-off.
CAN Communication Option:
Supports CAN bus for software-controlled starting and monitoring. Communicate directly with your battery's BMS.
Automatic Dual Voltage Detection:
Plug and play functionality. Automatically detects 110V or 230V input without manual switching.
Frequently Asked Questions
What types of batteries is this charger compatible with?
This charger is designed for 60V systems and is compatible with Lithium-ion, LiFePO4, LiMnO2, and Lead-acid batteries. The charging profile can be customized to match your specific battery chemistry.
Is the charger safe for outdoor or marine use?
Yes, it features an IP65/IP66 waterproof rating, making it highly resistant to water and dust, ideal for marine environments or outdoor applications.
Does it support different input voltages for international travel?
Absolutely. It features universal input (90~264Vac) with PFC. It automatically detects the voltage (110V or 230V) and adjusts itself, so no manual switching is required.
What is the warranty period for this product?
We offer a 2-year warranty on this charger, providing free replacement for quality-related issues during this period.
How does the smart charging technology work?
The charger uses a micro-processor to control a 4-step intelligent charging process: Pre-charge, Constant Current (CC), Constant Voltage (CV), and automatic Floating or Cut-off once the battery is fully charged.
Can this charger communicate with a Battery Management System (BMS)?
Yes, there is an optional CAN bus communication port available, allowing the charger to be controlled by software and share data with your battery's BMS.
