DC Power Supply LC200-2000-400 High-Power Bi-Directional DC Source Battery Protection Board Testing

1 / 5

DC Power Supply LC200-2000-400 High-Power Bi-Directional DC Source Battery Protection Board Testing

Customization:	Available
After-sales Service:	1 Year Warranty
Warranty:	1 Year

Send Inquiry

Product Description

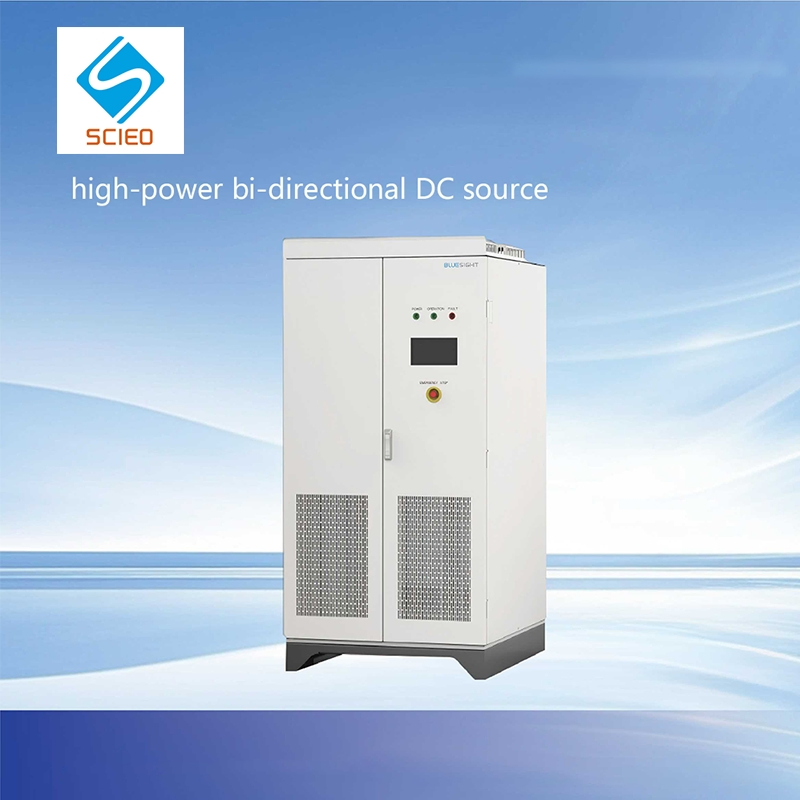

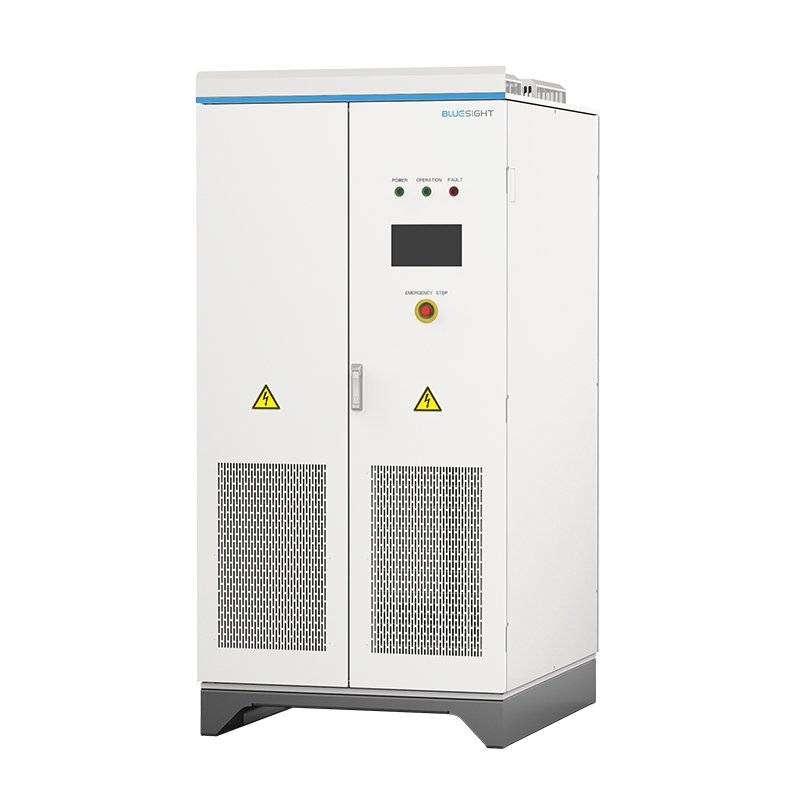

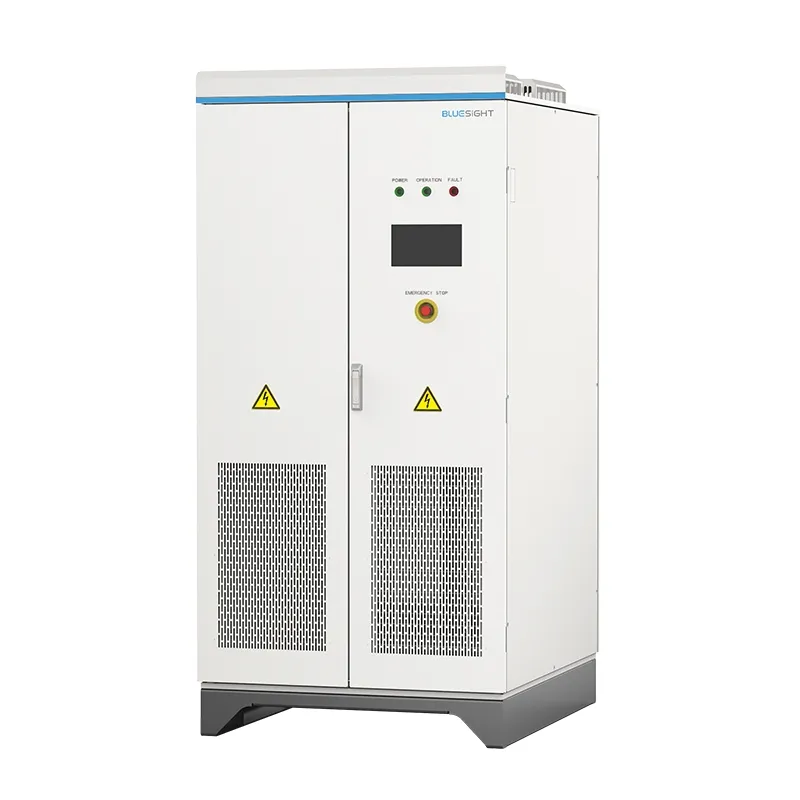

LC200-2000-400 High-Power Bi-Directional DC Source

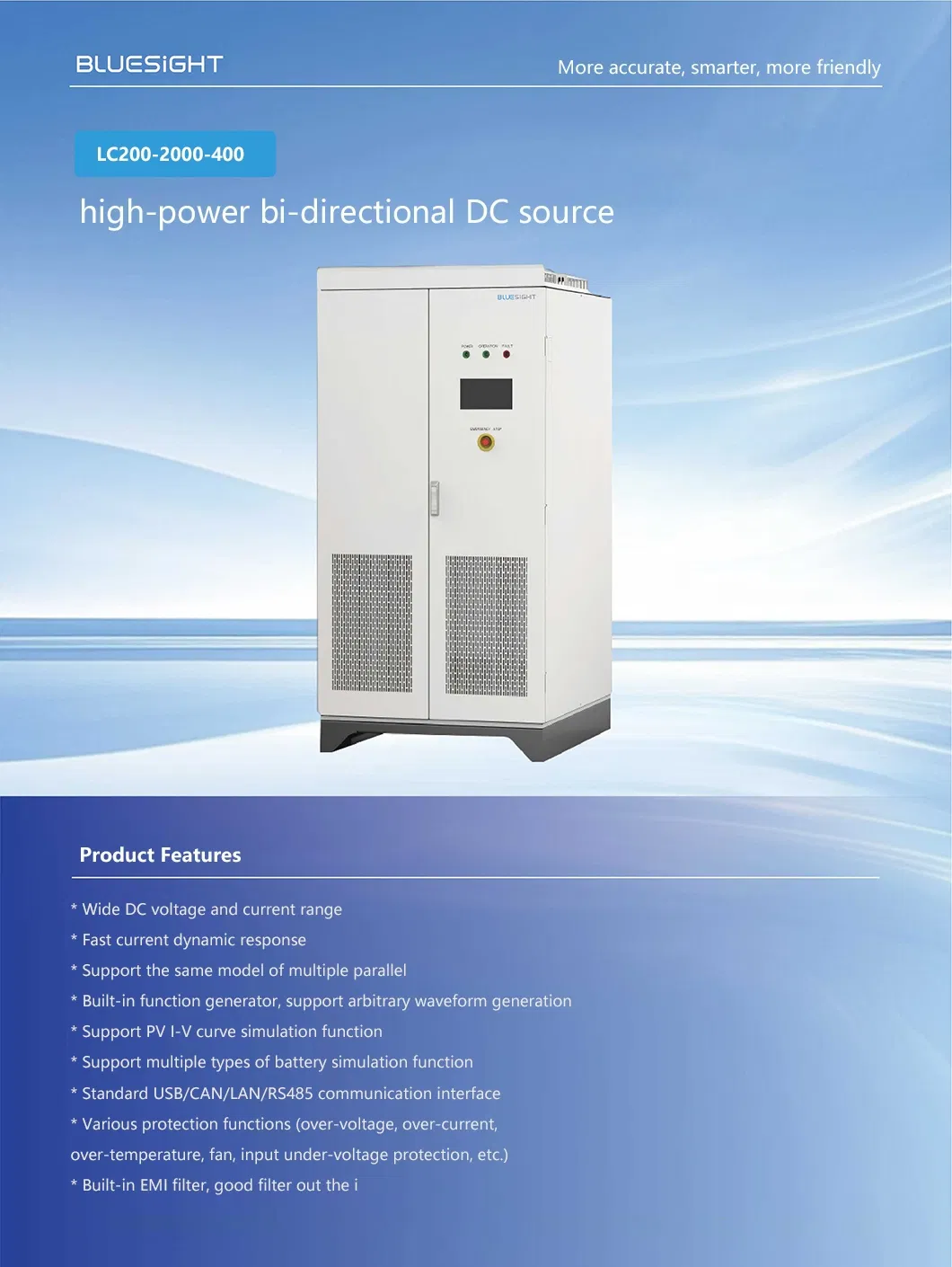

◈ Key Features & Advantages

✔ Wide DC voltage and current range for versatile applications.

✔ Fast current dynamic response ensuring high precision testing.

✔ Supports parallel connection of multiple units of the same model.

✔ Built-in function generator supporting arbitrary waveform generation.

✔ Integrated PV I-V curve and multiple battery simulation functions.

✔ Full protection: Over-voltage, over-current, over-temperature, and more.

◈ Technical Specifications

Basic Information
Model NO.	LC200-2000-400
Output Voltage	2000V
Output Current	±400A
Output Power	±200kw
Energy Feedback	Support Energy Recuperation and Feed Back to The Grid
Isolation Function	Inputs and Outputs Are Galvanically Isolated
AC Characteristics
AC Rated Voltage	400VAC
AC Voltage Range	360VAC~440VAC
AC Rated Frequency	50Hz/60Hz
DC Regulation & Accuracy
DC Voltage Range	0~2000VDC
Setting Accuracy	≤0.05%Fs
Voltage Resolution	0.01V
Current Switching Time	≤6ms (-90%~90%)
Simulation & Programming
Battery Simulation	Supports Lithium Iron Phosphate, Ternary Lithium, Lead-acid, etc.
IV Curve Simulation	PV scanning, tracking efficiency test, shadow occlusion simulation
Programming Steps	Up to 300 steps with cycle and execution mode control
Physical & Environmental
Dimensions (WHD)	1005mm2100mm1200mm
Weight	2000KG
Interface	Standard USB, CAN, LAN, RS485

◈ Product Application Gallery

Frequently Asked Questions

What is the maximum output capability of the LC200-2000-400?

This model provides a maximum output voltage of 2000V, a current range of ±400A, and a total power capacity of ±200kW.

Does this DC power supply support energy recovery?

Yes, it is a bi-directional source that supports energy recuperation, allowing energy to be fed back to the grid with high efficiency.

Which battery types can be simulated using this equipment?

It can accurately simulate various battery types including lithium iron phosphate, ternary lithium, and lead-acid batteries by setting parameters like SOC, series/parallel numbers, and cell capacity.

What communication interfaces are available for system integration?

The unit comes standard with RS485, CAN, LAN, and USB interfaces, making it compatible with various ATE automated testing systems.

What are the safety protection features?

The system includes multiple protection functions such as over-voltage, over-current, under-voltage, over-temperature, and fan failure alerts to ensure safe operation.

Can I perform solar panel testing with this source?

Yes, it features a built-in IV curve simulation function that supports PV scanning, tracking efficiency tests, and shadow occlusion simulation according to standards like EN50530.
