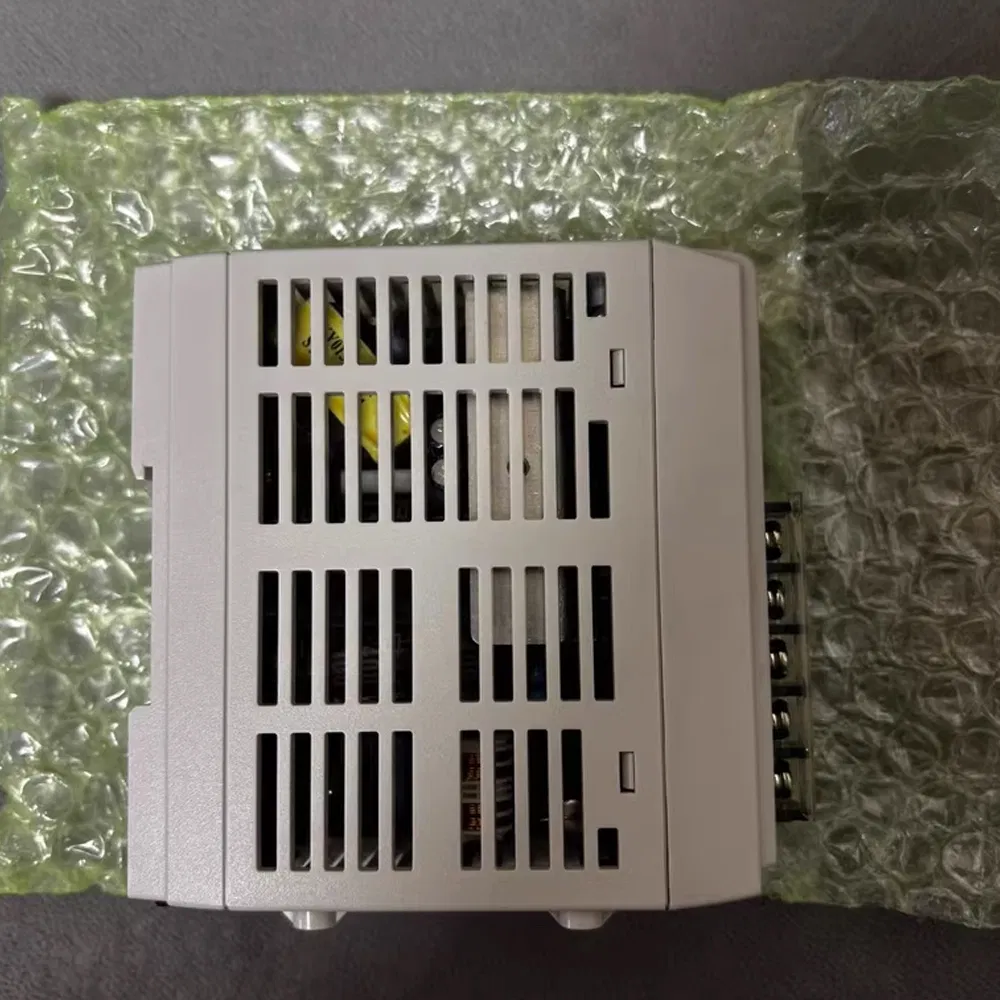

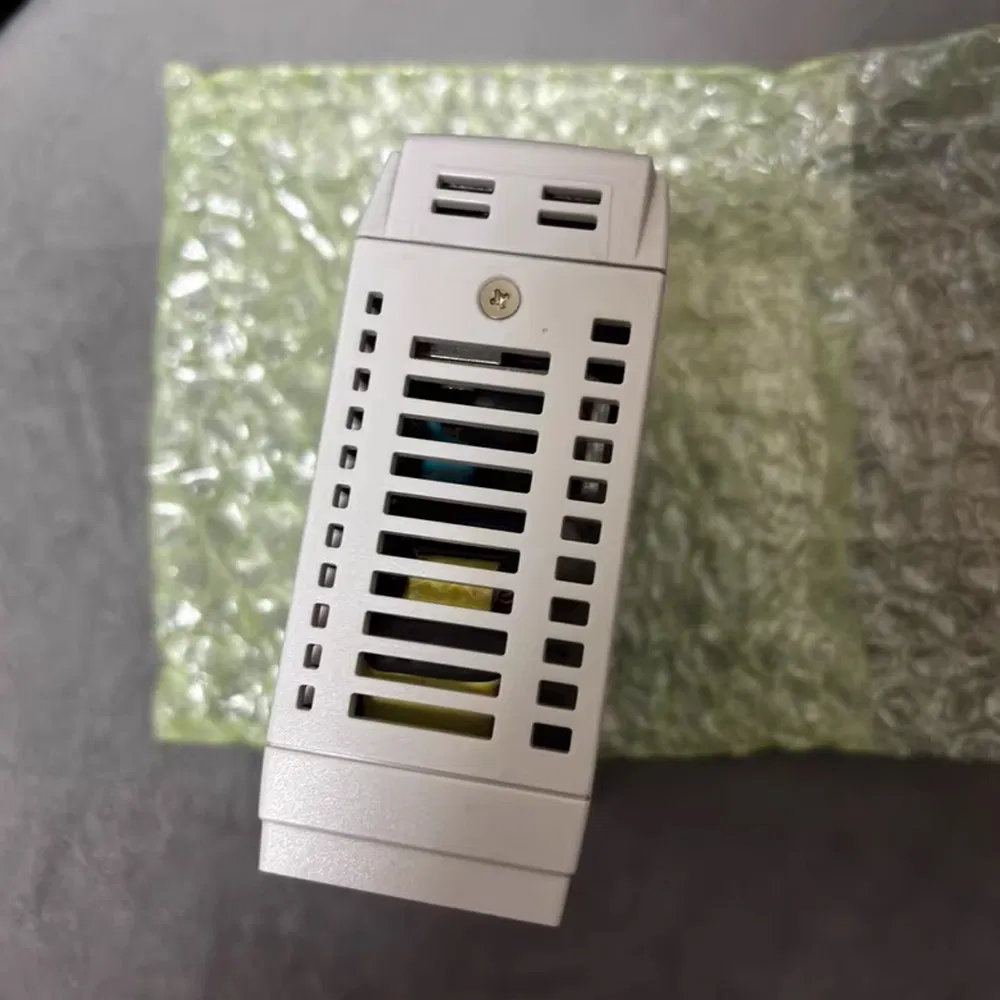

Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
1 / 5
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W
Keyence Ms2-H50 Output Current 2.1 a, 50 W

Keyence Ms2-H50 Output Current 2.1 a, 50 W

Customization: Available
Output Type: Other
Warranty: Other
Send Inquiry

Product Description

📋 Basic Information
Model NO.
MS2-H50
Output Power
50 W
Certification
CE, UL, CSA, EN
Brand
Keyence
Output Current
2.1 A
Cooling
Natural air-cooling
🔍 Product Description
KEYENCE MS2-H50 Output Current 2.1 A, 50 W
Input Voltage 85 to 264 VAC, 110 to 370 VDC
Frequency 47 to 63 Hz, DC
Input Current 1.3/0.7A or less (100/200 VAC)
Efficiency 82/85% typ. (with 100% load)
Rated Output 24V, 2.1A (50W)
Ripple/Noise 180mV (p-p) or less
Protection Overcurrent (Constant current limiting, auto reset), Overvoltage
Display 3-digit, 7-segment LED (Character height: 10 mm)
Vibration Resistance 10 to 500 Hz, 19.6 m/s² (2 G), X, Y, Z directions
Weight Approx. 270 g

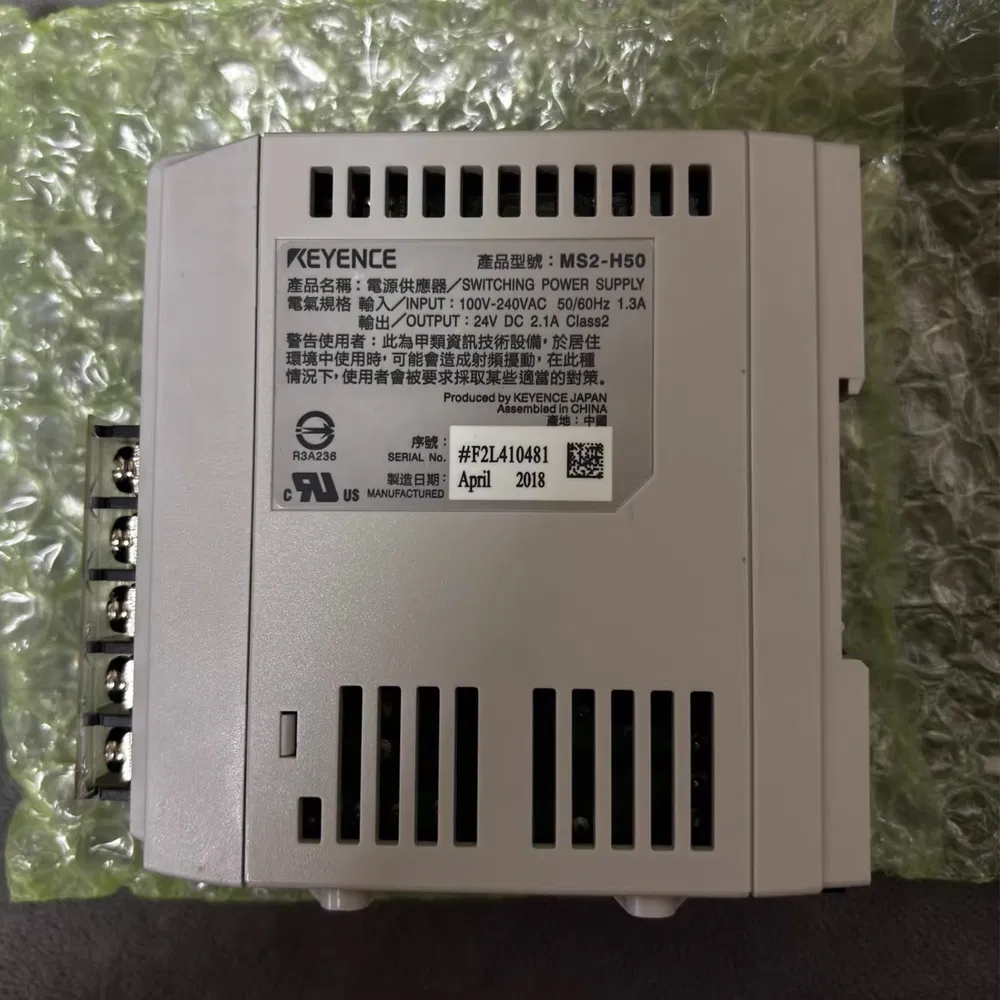

Keyence Ms2-H50 View 1

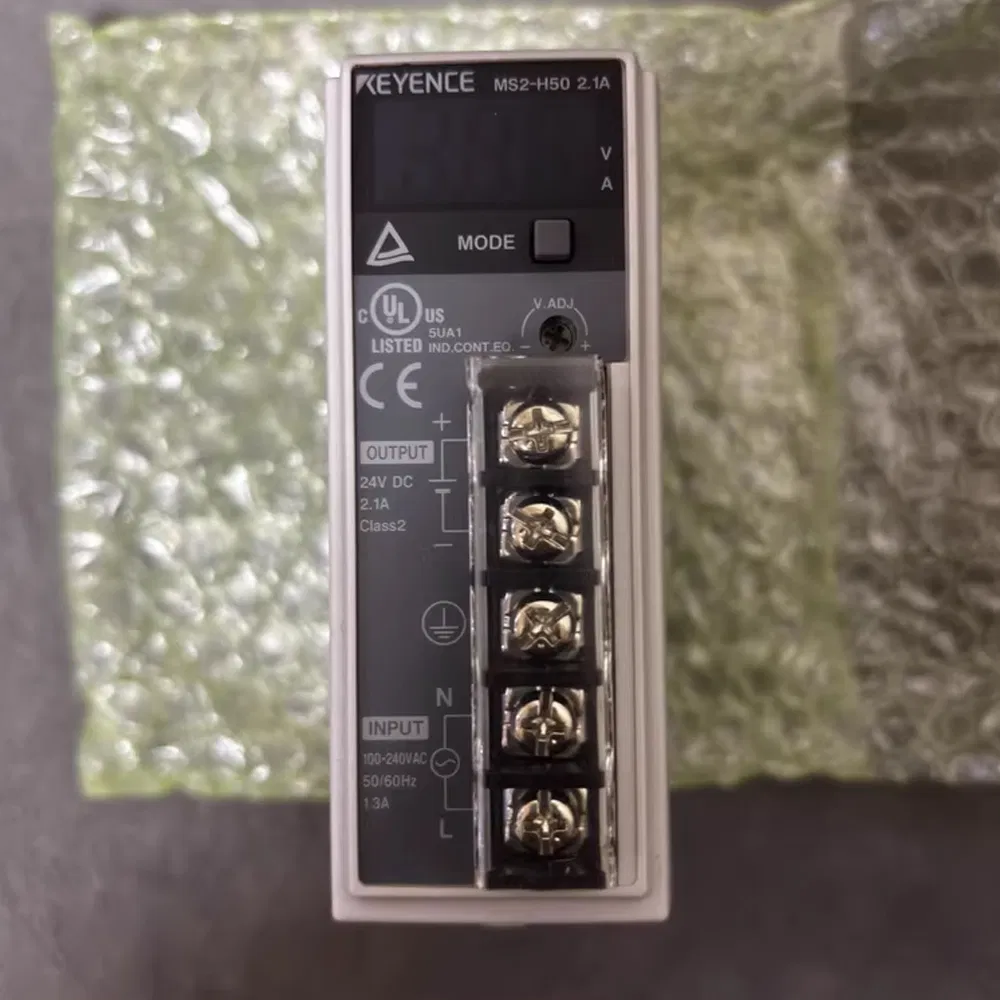

Keyence Ms2-H50 View 2

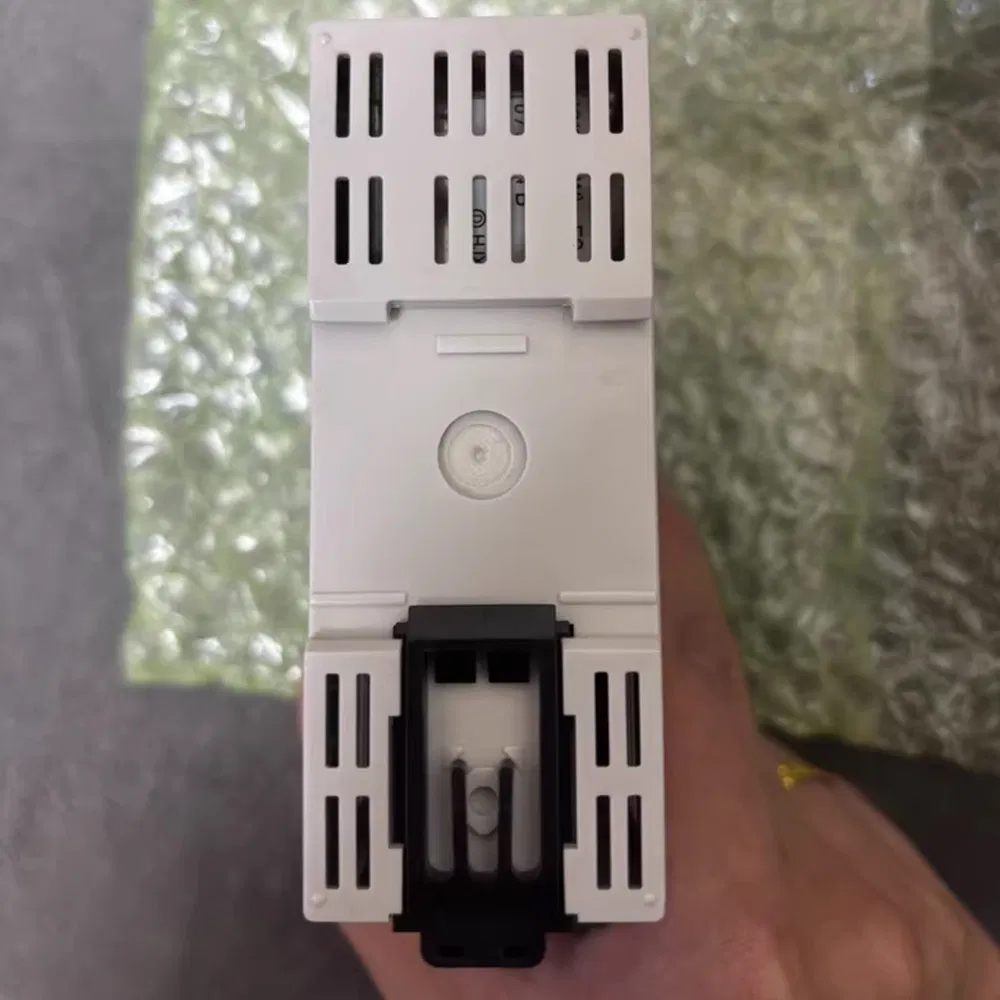

Keyence Ms2-H50 View 3
Keyence MS2-H50 Specifications Chart
Keyence MS2-H50 Dimensions
Keyence MS2-H50 Features
❓ Frequently Asked Questions
What is the rated output current for the MS2-H50?
The MS2-H50 provides a rated output current of 2.1 A with a total output power of 50 W.
What are the input voltage requirements?
It supports a wide range of input voltages from 85 to 264 VAC or 110 to 370 VDC.
Does the unit feature a built-in display?
Yes, it includes a 3-digit, 7-segment LED display with a character height of 10 mm for clear monitoring.
What safety standards does the MS2-H50 comply with?
The model complies with multiple standards including UL508, UL60950-1, CSA C22.2, EN60950-1, EN50178, and IEC60950-1.
How is the overcurrent protection handled?
The protection activates when current reaches 125% or more of the rated output, utilizing constant current voltage limiting and automatic reset.
Can multiple units be operated in parallel?
Parallel operation is possible, though it requires the OP-42207 accessory for proper integration.
