E-Tronde Charger
1 / 5

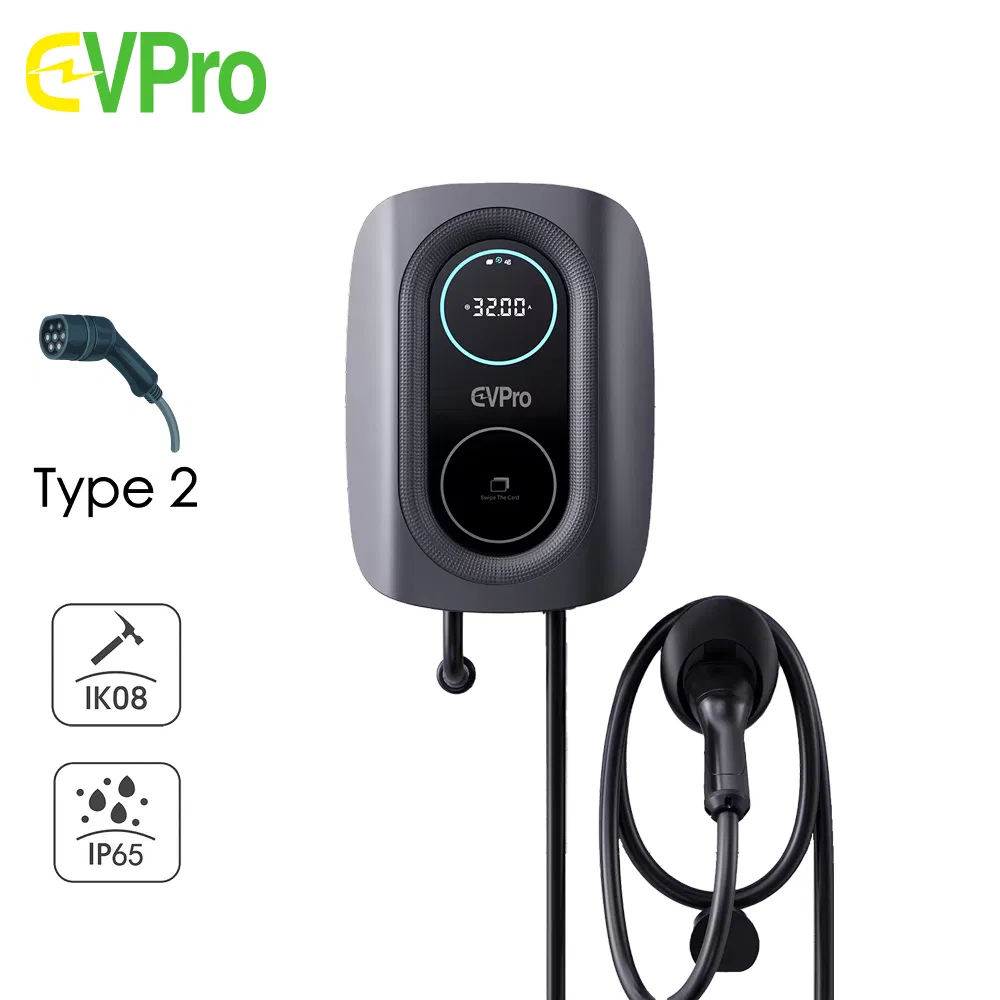

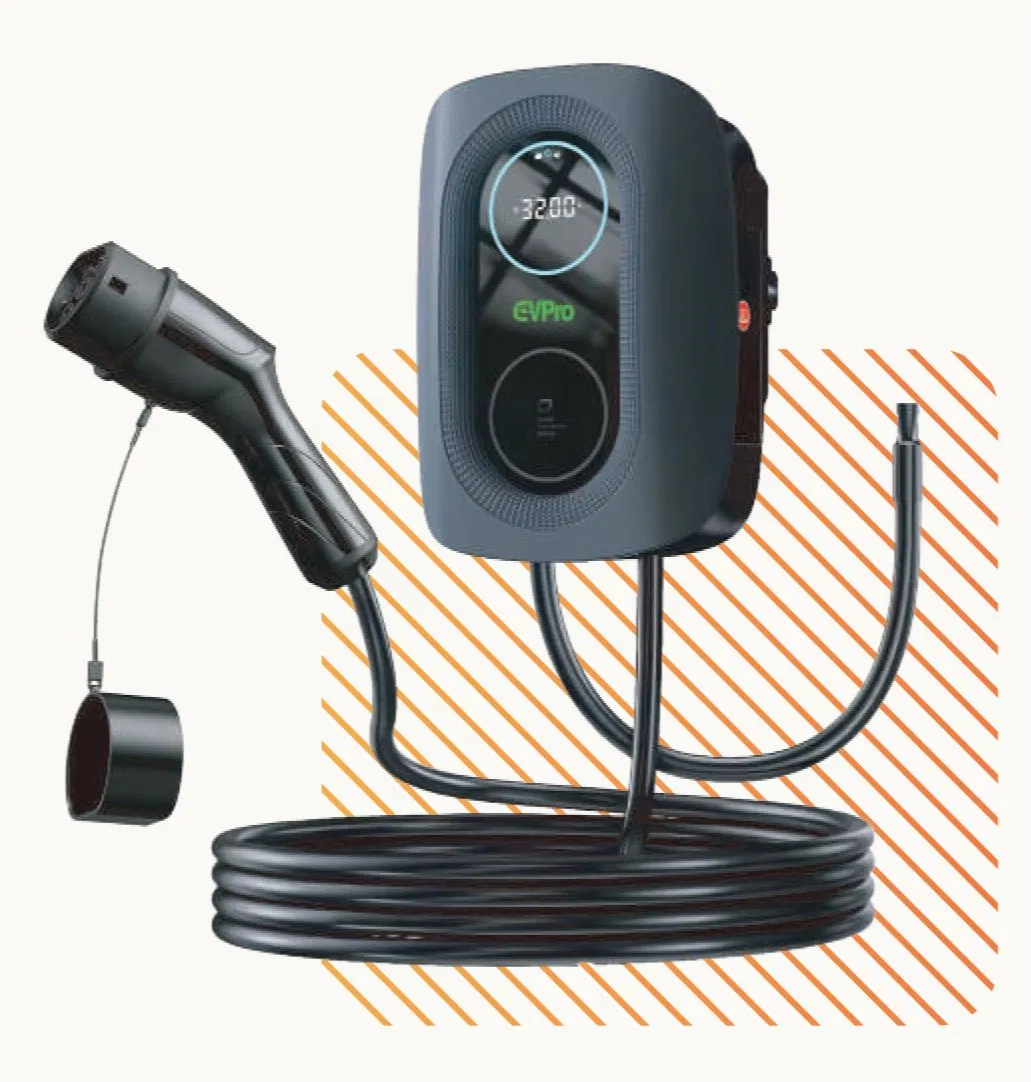

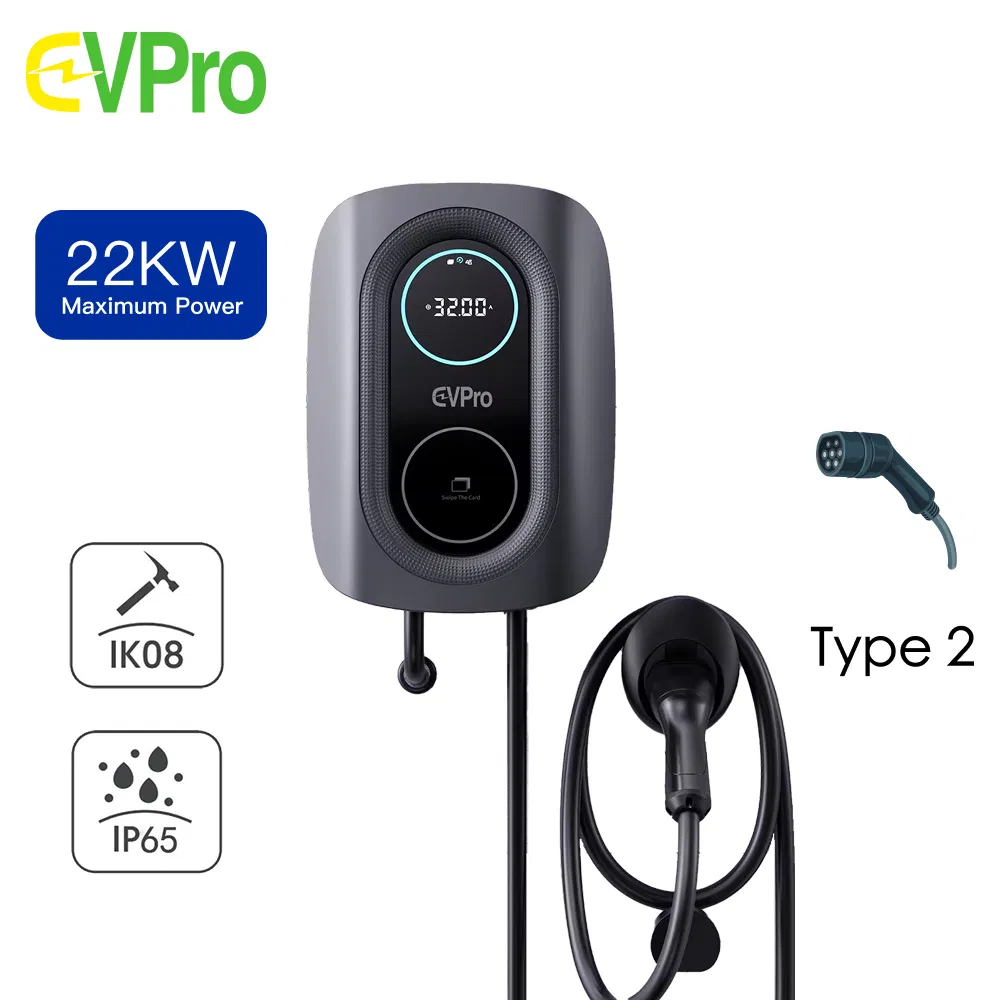

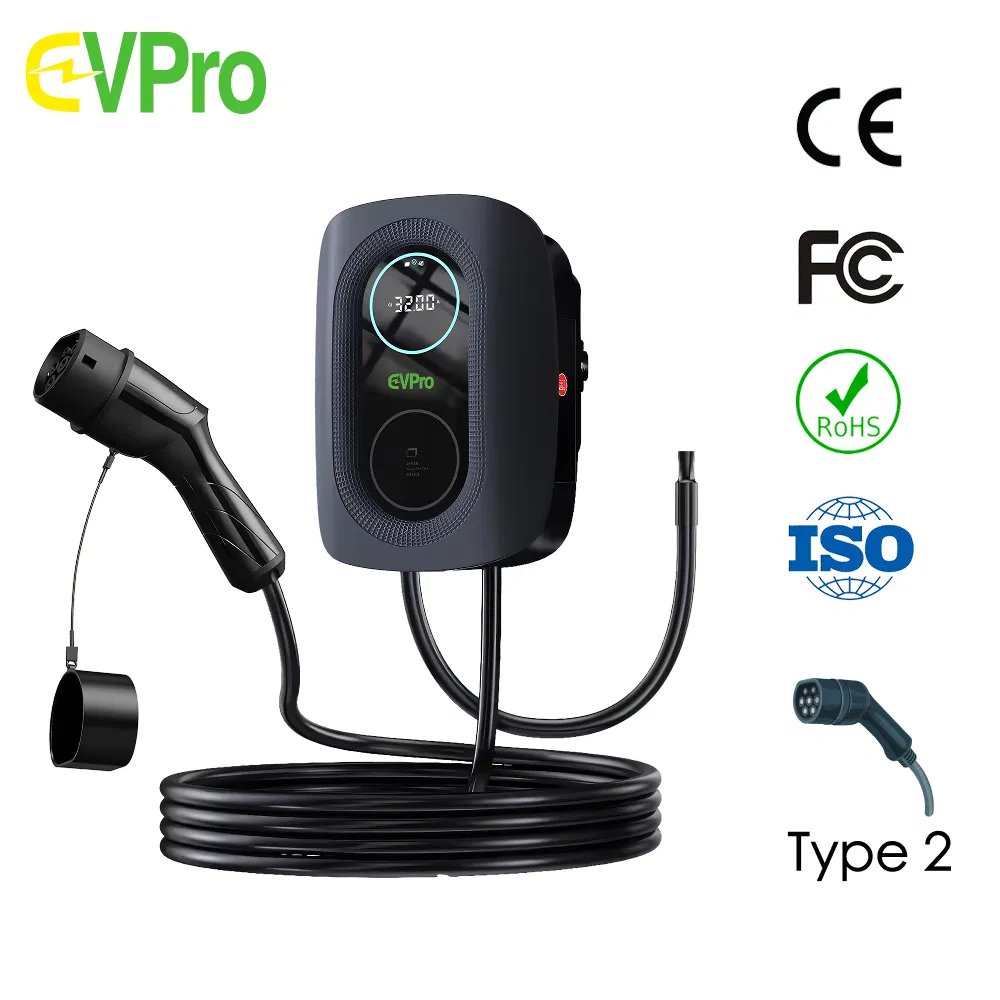

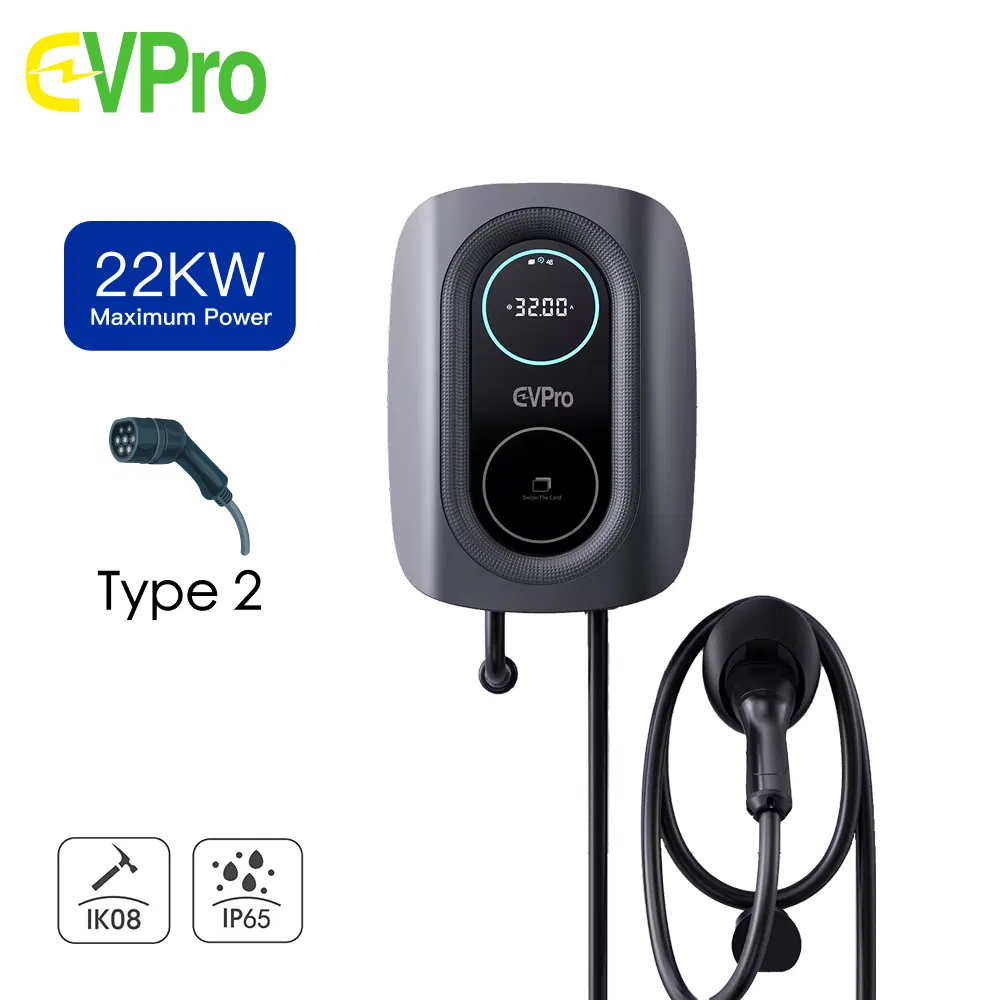

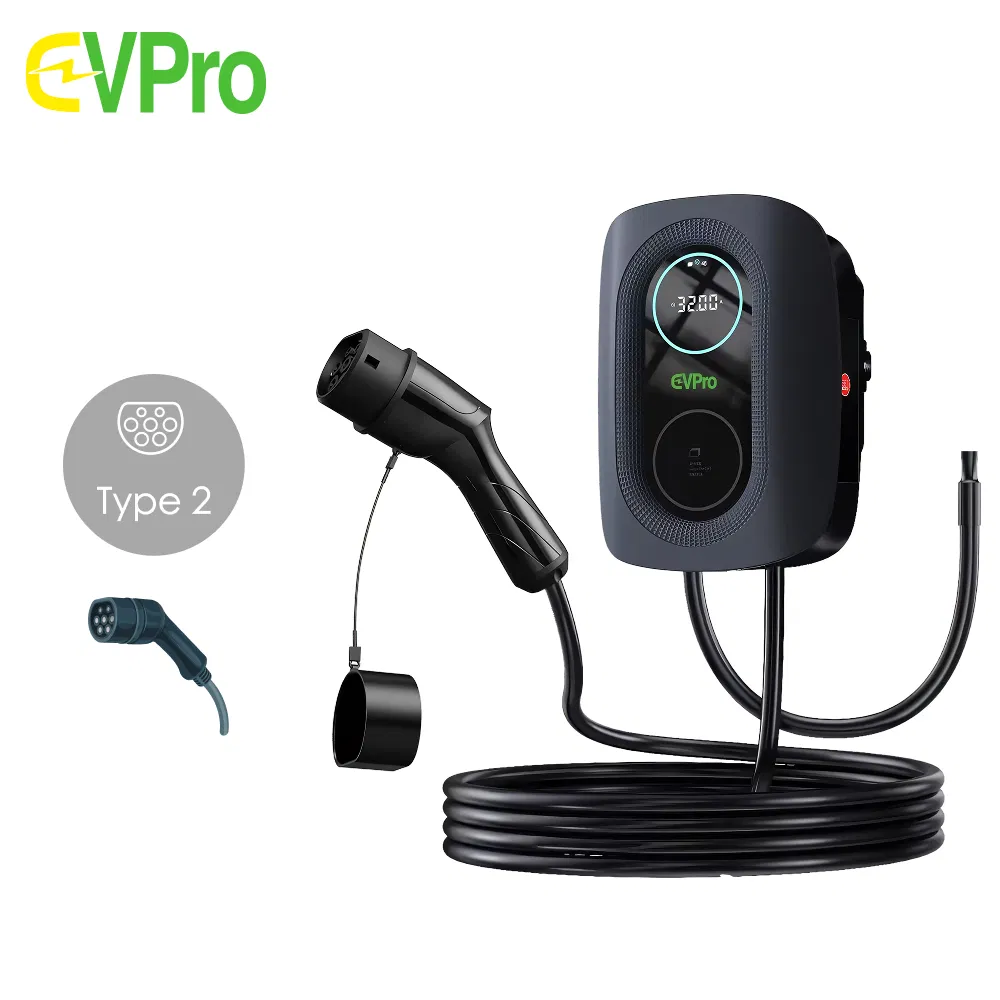

The ECO2 Wallbox EV AC Charger boasts an innovative and minimalist design. It supports charging powers of 3.6kW/7kW/11kW/22kW, features an impact protection level of IK08 and a waterproof level of IP65, has Type A RCD + DC6mA leakage protection, and is compatible with IEC 62196 Type2/CCS2 EV plugs.
| Category | Data Parameters |
|---|---|
| Rated Input Voltage | AC380V |
| Rated Output Current | 32A |
| Standby Power | ≤7W |
| Input Frequency | 50Hz |
| Operating Temperature | -30℃ to +55℃ |
| MTBF | 50,000 Hours |

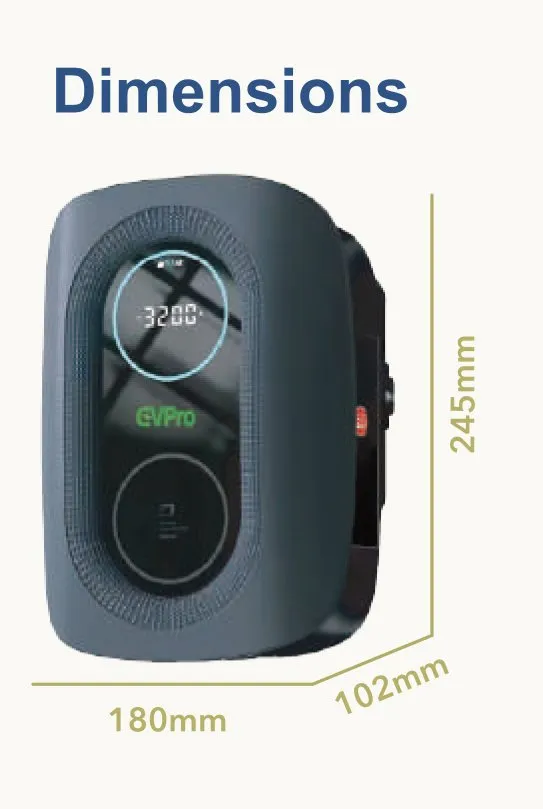

| Dimensions | 180×245×100mm |
| Net Weight | 5.5kg |
| Electrical Safety | Over/Under Voltage, Over Current, Missing Ground |
| Emergency Stop | Manual Emergency Stop Button |

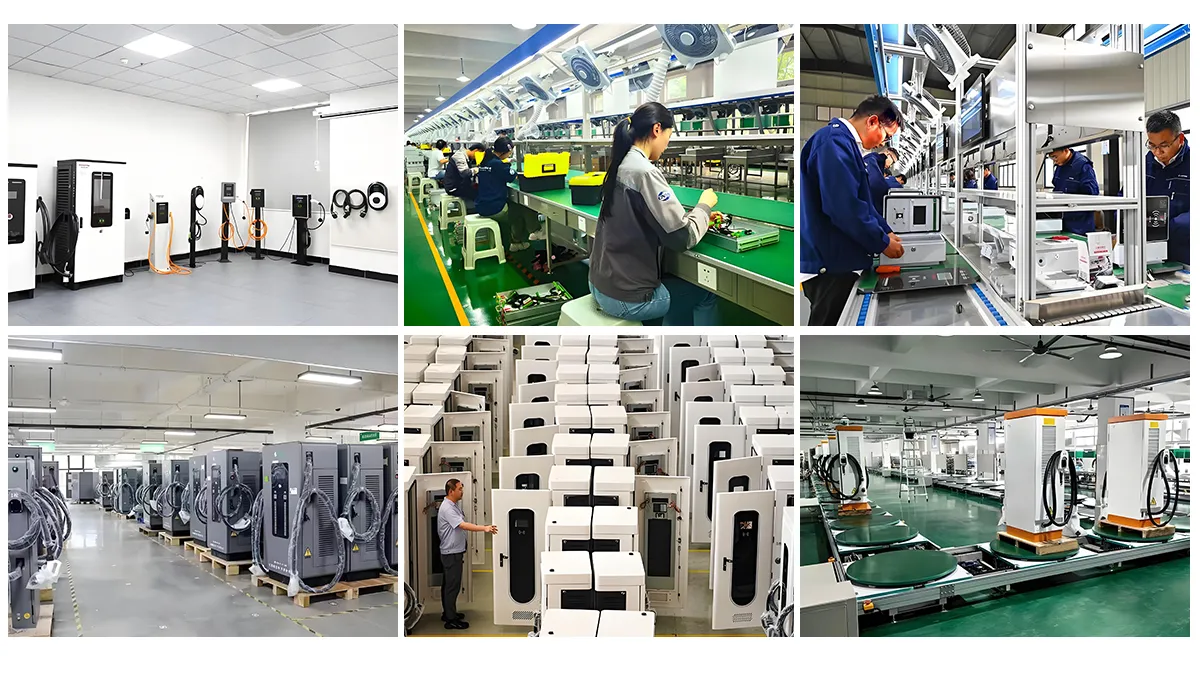

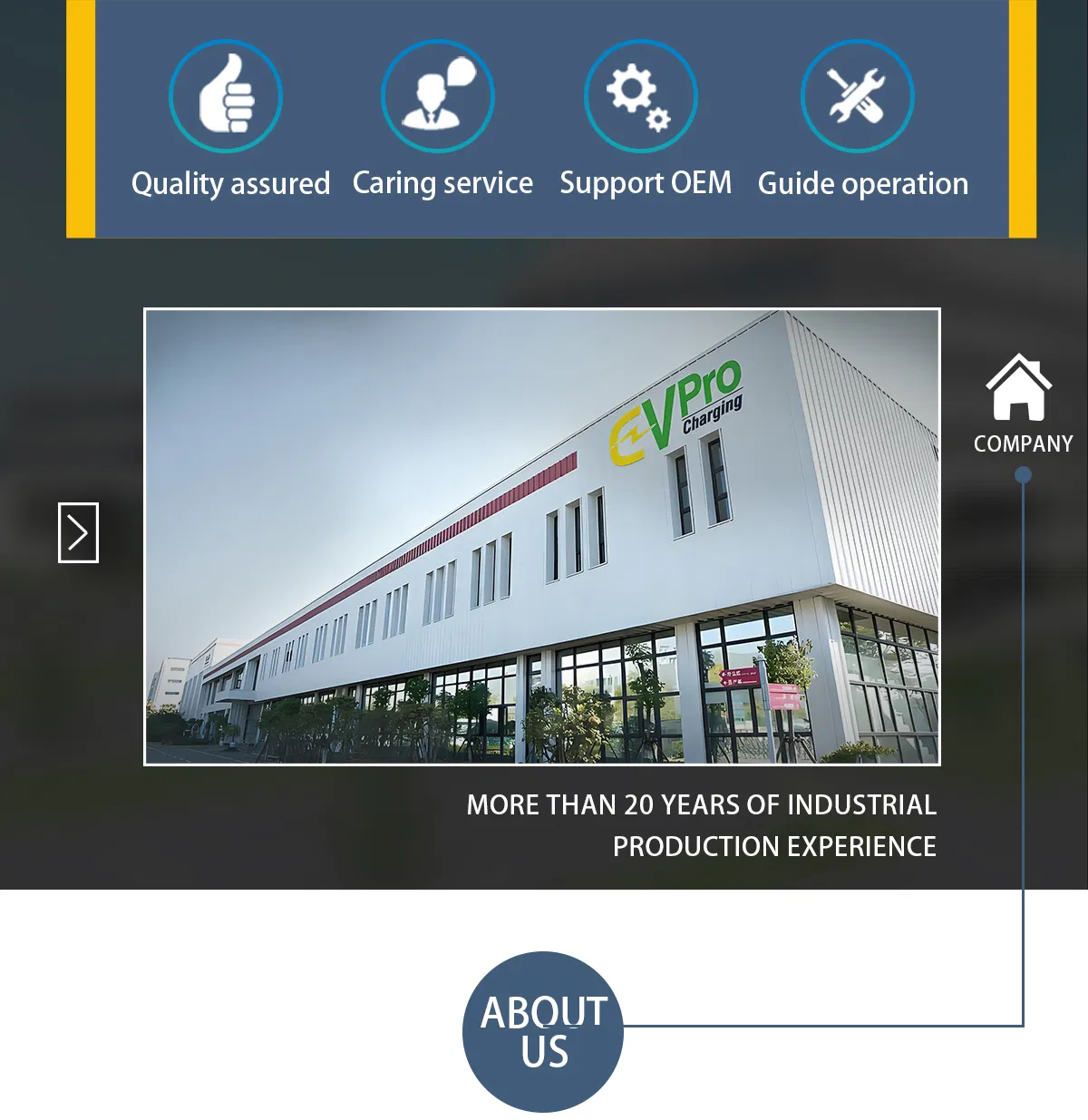

As a fully integrated provider, we control every stage of the EV charging ecosystem to deliver superior quality and cost-competitive solutions. We operate our own manufacturing facility producing both AC and DC chargers with custom hardware configurations and rigorous quality control standards.
Our innovation is driven by a smart, interconnected system that manages power flows between solar panels, the electrical grid, and building loads. V2G capabilities transform EVs into mobile energy storage units that can feed power back into the grid when needed most.
